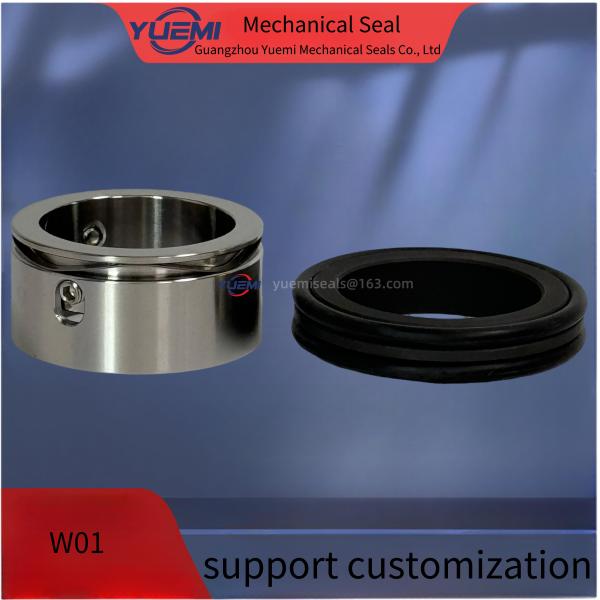

Aesseal W01 Mechanical Seal Roten 7K Wave Spring Seal For Water Pump

  • 1
  • 2
  • 3

Brand Name : YUE MI

Model Number : W01

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 1/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Model NO. : N49/Roten7k

Face Material : Carbon, Sic, Tc

Specification : OEM

Function : for Pump, Compressor

Type : Roten

Leadtime : Fast to Ship

Contact Now

Aesseal W01 Mechanical Seal Roten 7K Wave Spring Seal For Water Pump

Product Description

Aesseal W01 Mechanical Seal Roten 7K Seal For Water Pump

Operational Conditions:

  1. Wave sprung grub screwed thin Cross Section' short working length mechanical seal.

    Available in Food Grade materials as standard (With FDA compliant materials).

  2. Wave spring mechanical seal

  3. Mediums: Water, oil, weak acid, weak alkali, etc.
It is equivalent to
  • Roten 7K/Uniten 7K mechanical seal
  • John Crane 80 (DF/ FP) seal
  • Aesseal W01 seal
  • Flowserve 168 seal
  • Latty T510
  • Roplan 800/ 850 seal
  • Sterling 280 seal

Aesseal W01 Mechanical Seal Roten 7K Wave Spring Seal For Water Pump

P

(mm)

 D1 D3 L1 L2
15.8 28.5 27.0 19.1 6.3
16.0 28.5 27.0 19.1 6.3
19.1 31.7 30.0 19.1 6.3
24.0 35.4 34.1 19.1 7.6
28.0 42.0 40.0 19.1 7.6
28.6 41.2 39.5 19.1 7.6
30.0 42.7 41.0 19.1 7.6
31.7 44.2 42.4 19.1 7.6
32.0 44.4 42.4 19.1 7.6
35.0 47.6 45.5 19.1 7.6
38.0 53.9 51.8 21.1 8.1
44.4 60.3 58.2 21.1 8.1
47.6 63.5 61.4 21.1 8.1
50.0 63.9 61.9 21.1 8.1
50.8 66.6 64.6 22.1 9.6
53.9 73.0 71.0 22.1 9.6
54.0 73.9 71.0 22.1 9.6
54.6 75.0 72.0 22.1 9.6
55.0 75.0 72.0 22.1 9.6
63.0 83.0 79.3 25.8 9.1
63.5 88.9 79.3 25.8 9.1
69.8 95.2 88.9 25.8 9.1
73.0 98.4 94.0 25.8 9.1
75.0 100.4 96.0 25.8 9.1

Description:

Temperature
-20ºC to 200ºC, Dependent on the elastomer
Pressure
 ≤0.8MPa
Speed
 ≤ 15m/Sec
End play/axial float allowance
±0.1mm
Size
From 15.8 to 75
Brand
YueMi
Face
Carbon, SiC
Seat
Ceramic, Silicon Carbide, TC
Elastomer
NBR, EPDM, VIT etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
